产品属性
产品名称: | 超声提取罐 |
产品编号: |
产品描述
1.简介
超声提取罐是公司常规产品,是在热回流提取技术的基础上,配备超声提取管,凝聚了公司2项自主创新的发明专利,广泛应用于各种植物提取,特别是在提取温度较低的条件下,实现短时间(1~3小时)的快速提取。
2.工作流程及原理
被提取的植物原料和提取溶媒投入超声提取罐中,在搅拌和超声的作用下实现提取。
提取管配备超声装置,加速提取速度,在50℃提取温度条件下,短时间内达到最大提取率。
配备的冷凝器可以将过程中挥发的溶剂冷却回收,重新进入提取罐中,形成回流提取。
配备水循环调温装置,在50℃下任意调控提取温度。
3.效率指标
提取率:≥95%。
提取时间:30~180min。
4.应用范围
4.1.提取溶媒
适合:水、各种易燃易爆有机溶剂、碱性液、低浓度的柠檬酸。
不适合:酸性液。
4.2.提取温度
温度可调可控,具体温度根据工艺要求任意设定,最高可至60℃。
4.3.原料及处理
适合:植物原料经粉碎后呈均匀颗粒状。
不适合:大块状、长杆状、丝状。
5.性价比及设备选型
和同类型提取罐相比,在常低温提取温度下,提取时间显著缩短,是同类型的1/4~1/6. 即在应用于提取热敏性物质时,优势明显,性价比高。
6.设备构成
6.1.主体部件
超声提取罐。
搅拌装置。
温控装置。
冷凝器。
在线自动清洗装置。
观察和清洗手孔
6.2.配置和控制器件
在线液位、温度、真空等检测仪表
变频器

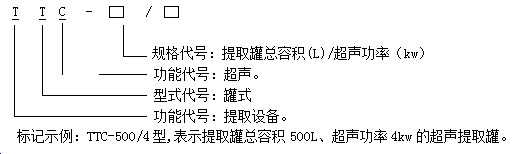

7.型号代号
8.型号规格及图片

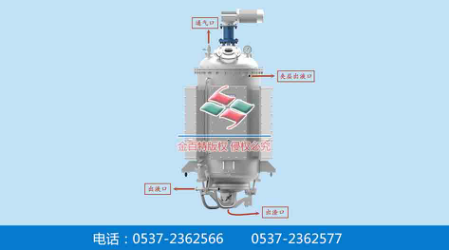

8.1.超声提取罐

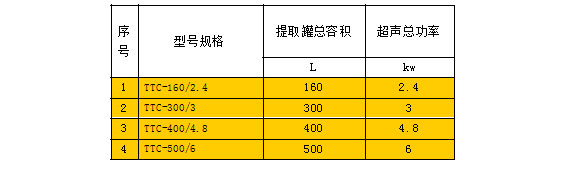

型号规格一览表

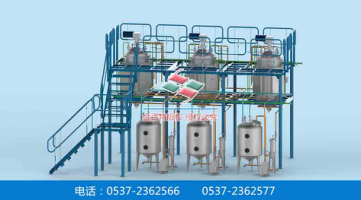

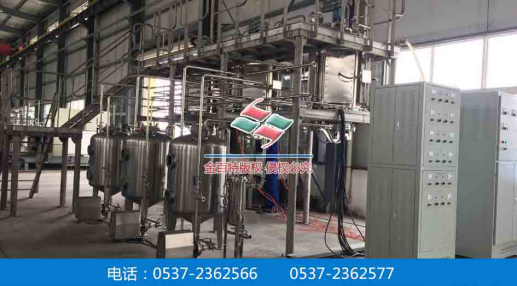

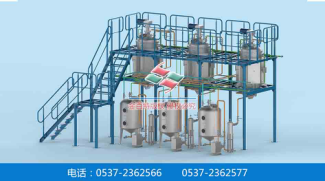

9.典型提取生产线工程实例:
